Specifications
Weight
Pressure400
Dimension1
Fluidic Interface
Temperature range250
323
Response time100
Setting range1
50
Activation range
Cracking pressure
Kv
Power
Speed
Rotational speed
Torque
Voltage
Mass flowSensor channels
Fluid
Media
Processor
mil (0.001 in)
CAD file and manual document available upon request.

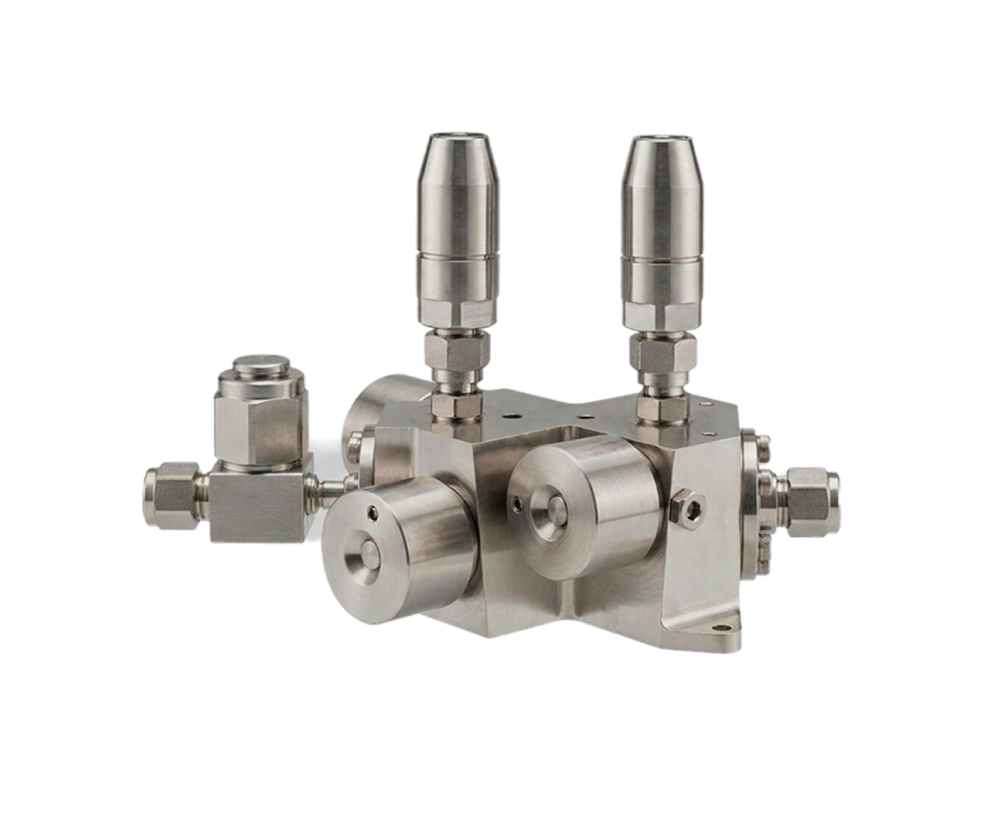

PR1c
Pressure Regulators
Description
Closed-loop pressure regulation systems for which an integrated controller electronics and pre-configured software, enabling plug-and-play operation without external control hardware can be purchased. The normally closed electrovalve architecture provides fast, accurate, and repeatable pressure adjustments.
Additional technical details
- Redundant configuration with two 1 mm flow passages.
- Kv: 2 × 0.04/1 mm.
- Peak power: 65 W when two electrovalves are actuated simultaneously.
- Sensor channels: on request.
Application type
Deep Space Applications
deep-space-applications
Launch Vehicles
launch-vehicles
Maturity
Engineering model
Modifiable parameters on request
